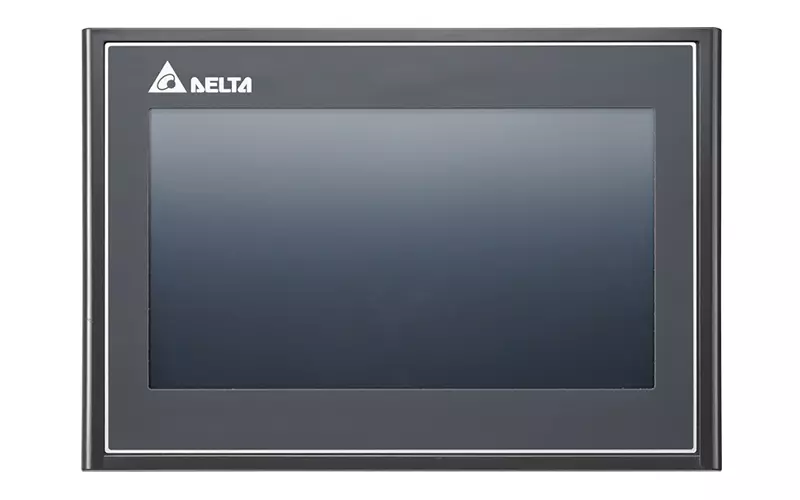

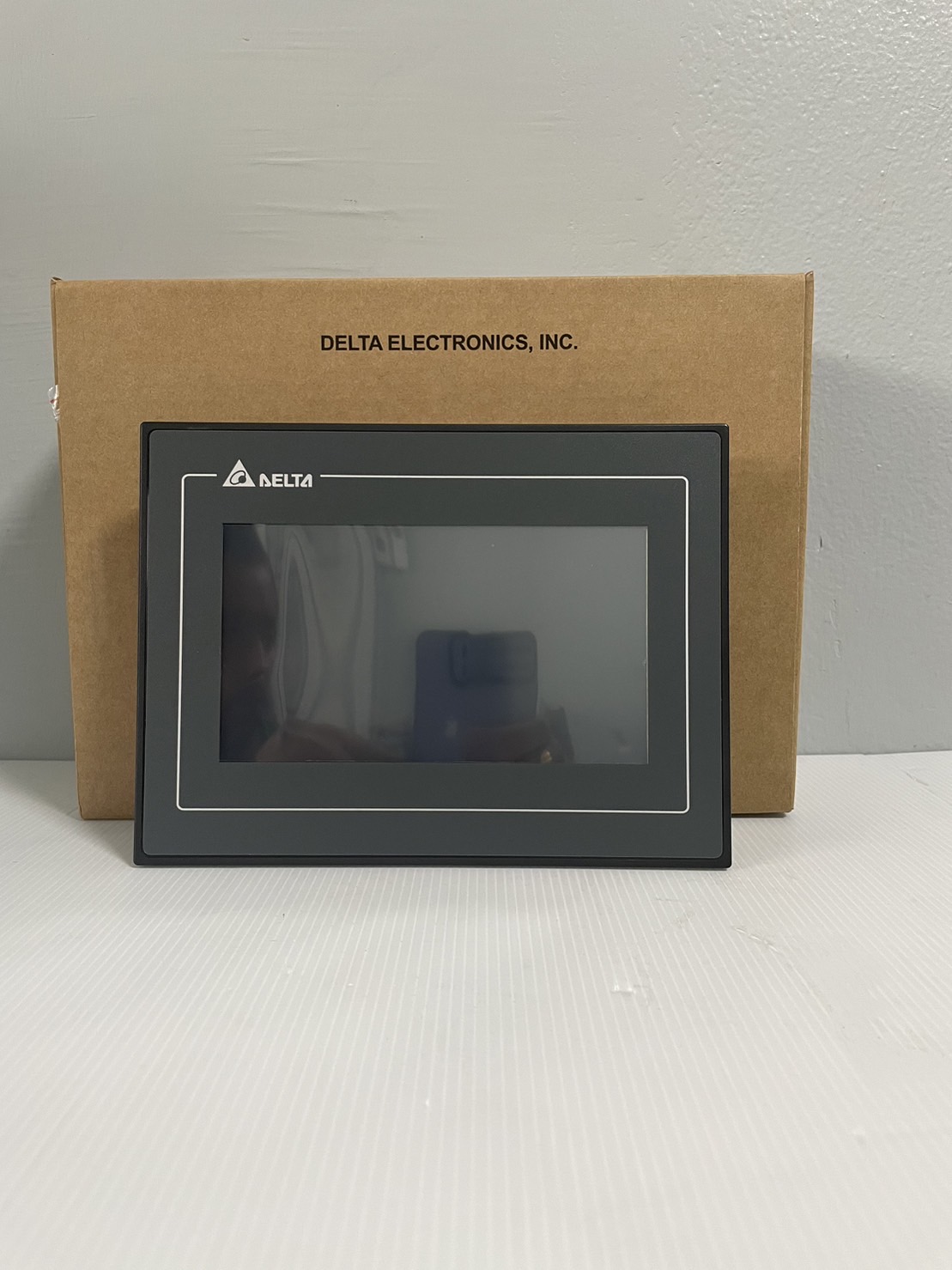

Delta DOP-107CV 7 Inch Touchscreen HMI – 800×480 TFT, RS-232/RS-485/RS-422, USB
HMI
1 / 4

HMI

Delta DOP-107CV 7 Inch Touchscreen HMI – 800×480 TFT, RS-232/RS-485/RS-422, USB

Brand: DELTAModel: DOP107CV

Technical Specifications

CPU
ARM Cortex-A8
RAM
256 MB
RTC
true
COM1
RS-232
COM2
RS-232 / RS-485
COM3
RS-422 / RS-485
Brand
Delta
Model
DOP-107CV
Buzzer
Multi-tone, 2 kHz to 4 kHz, 80 dB
Series
DOP-100 Series
Weight
Approximately 970 g
Cooling
Natural cooling
Ethernet
false
USB Host
true
Approvals
CE / UL
Backlight
LED
CPU Speed
800 MHz
Flash ROM
256 MB
Brightness
400 cd/m²
Dimensions
215 x 161 x 61.2 mm
Resolution
800 x 480 pixels
USB Client
true
Display Area
154.08 x 85.92 mm
Display Size
7 inch
Display Type
TFT LCD
Power Supply
24 VDC
Product Type
Industrial Touchscreen HMI
SD Card Slot
false
Display Colors
65,536
Touchscreen Life
More than 10,000,000 operations
Touchscreen Type
4-wire resistive
Operating Humidity
10% to 90% RH at 0 to 40 °C; 10% to 55% RH at 41 to 50 °C
Mounting Dimensions
196.9 x 142.9 mm
Storage Temperature
-20 to 60 °C
Programming Software
DOPSoft
Operating Temperature
0 to 50 °C
Front Panel Protection
IP65 / NEMA 4 / UL Type 4X
Operating Voltage Range
20.4 to 27.6 VDC
Maximum Power Consumption
8.5 W
☆☆☆☆☆
No reviews yet
$599.00

Product Description

Scroll to read

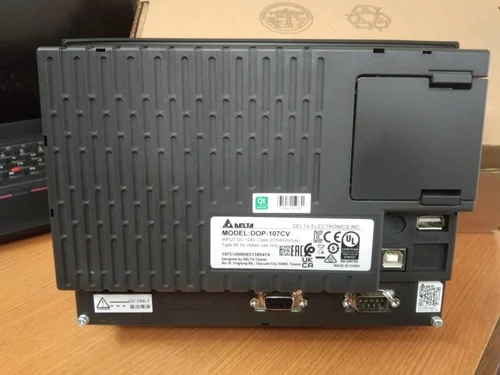

The Delta DOP-107CV is a 7-inch industrial touchscreen Human Machine Interface (HMI) designed for machine automation, PLC control, process monitoring, and industrial equipment applications. It features a 7-inch 65,536-color TFT display with 800 × 480 pixel resolution and a 4-wire resistive touchscreen. Powered by an 800 MHz ARM Cortex-A8 processor, the DOP-107CV provides 256 MB RAM and 256 MB Flash ROM for reliable HMI operation. The unit supports multiple serial communication interfaces, including RS-232, RS-485, and RS-422, making it suitable for communication with PLCs, drives, controllers, meters, and other industrial devices. File Center The HMI also includes USB Host and USB Client ports, a built-in calendar/RTC, buzzer, and an IP65/NEMA4/UL Type 4X front panel rating for indoor industrial applications.
